PTFE FEP双层热缩套管

热缩套管提供结合紧密、耐湿、耐磨的封装，外层PTFE管受热时收缩，形成紧密配合，FEP内层熔化，流动并封装零件。

Dual-Shrink®

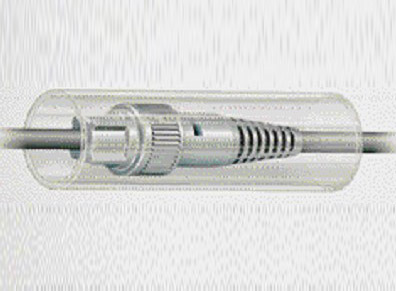

Heat shrink tubing offering a tight moisture-proof encapsulation
Outer tubing of PTFE shrinks for tight fit when heat is applied
Inner layer of FEP melts and flows to encapsulate parts

Sizes and Dimensions (inches)
Standard Wall				Lightweight Wall
	As Supplied		Recovered Dim. After Shrinking		Recovered Dim. After Shrinking		Recovered Dim. After Shrinking
Item No.	I.D. Min	I.D. Will Shrink to at Least	Total Wall Thickness - Norm.	Item No.	I.D. Min	I.D. Will Shrink to at Least	Total Wall Thickness - Norm.
ZDS-S-036	0.036	0.000	N/A	ZDS-L-065	0.065	0.000	N/A
ZDS-S-060	0.060	0.000	N/A	ZDS-L-115	0.115	0.045	0.015
ZDS-S-130	0.130	0.000	N/A	ZDS-L-130	0.130	0.060	0.015
ZDS-S-160	0.160	0.000	N/A	ZDS-L-180	0.180	0.065	0.015
ZDS-S-190	0.190	0.062	0.035	ZDS-L-190	0.190	0.070	0.015
ZDS-S-250	0.250	0.125	0.035	ZDS-L-240	0.240	0.150	0.020
ZDS-S-350	0.350	0.190	0.035	ZDS-L-350	0.350	0.210	0.025
ZDS-S-450	0.450	0.312	0.055	ZDS-L-480	0.480	0.315	0.032
ZDS-S-700	0.700	0.440	0.055	ZDS-L-700	0.700	0.500	0.040
ZDS-S-950	0.950	0.630	0.065	ZDS-L-1000	1.000	0.700	0.045
